Moza Racing review: our verdict

This Moza Racing review covers the brand's direct-drive sim racing gear: wheel bases, steering wheels, pedals and the software that ties them together. Moza has become one of the most talked-about names in sim racing because it offers direct-drive force feedback, once reserved for expensive enthusiast hardware, across a very wide price ladder, from the compact R3 to the R25 Ultra. That breadth, and the strength of the mid-range bases, is why we rank Moza as our best value direct-drive brand.

The caveats are important. Most Moza hardware is officially supported on Windows PCs only, Xbox use requires specific licensed wheels, and PlayStation support had only just been announced at the time of writing. Reviewers also flag small practical irritations such as mounting options and the cost of pedal upgrades. For a PC sim racer, Moza is one of the easiest recommendations in the category. For a console player, check compatibility before anything else.

NerdBible did not run its own driving sessions for this review. It is an editorial assessment based on Moza's own product and support pages and on independent reviews from PC Gamer, Traxion and OC Racing.

What is Moza Racing and who is it for?

Moza makes simulation hardware for racing and flight. Its homepage lists wheel bases, steering wheels, pedal sets, shifters and handbrakes, complete racing simulator setups, haptic motion accessories and a separate flight sim range. Traxion describes Moza as a Chinese sim racing peripheral maker.

The wheel base range runs from small to very powerful. Moza's R3 support page lists the entry R3 base at 3.9 Nm of peak torque. The mid-range includes the R9 and the R12 V2 at 12 Nm, followed by the R16. At the top, the R25 Ultra is rated at 25 Nm and adds a built-in torque sensor, alongside the 21 Nm R21 Ultra.

Moza suits:

  • PC sim racers moving up from gear or belt-driven wheels. The R3 and R5 bundles are a lower-cost way into direct drive.
  • Enthusiasts who want mid-range torque without flagship prices. The R9 and R12 are where most reviewers see the best balance.
  • Serious drivers building a full rig. Load-cell pedals, formula wheels, shifters and complete simulator setups let you stay in one ecosystem.

Key features

Direct-drive force feedback at every level

Every Moza base is direct drive: the wheel attaches straight to the motor shaft, which gives faster, more detailed force feedback than belt or gear systems. The R12 V2 product page lists a 21-bit magnetic encoder, rotation adjustable from 90 to 2,700 degrees, an aviation-grade aluminium body and the NexGen 4.0 force feedback algorithm. The R25 Ultra's support page adds a zero-cogging flat-wire motor and a torque sensor that measures actual output, which Moza says allows feedback based on real motor output.

Steady updates to existing models

Moza revises its bases rather than leaving them unchanged for years. Its R9 version guide explains that the R9 V2 added support for the ES steering wheel, and that the R9 V3 introduced a slip ring rated for more than five million revolutions, an intelligent active cooling system and the NexGen 4.0 force feedback algorithm. That is good news for buyers of new units, but it means the version number matters when comparing listings or buying second-hand.

Pit House software and mobile app

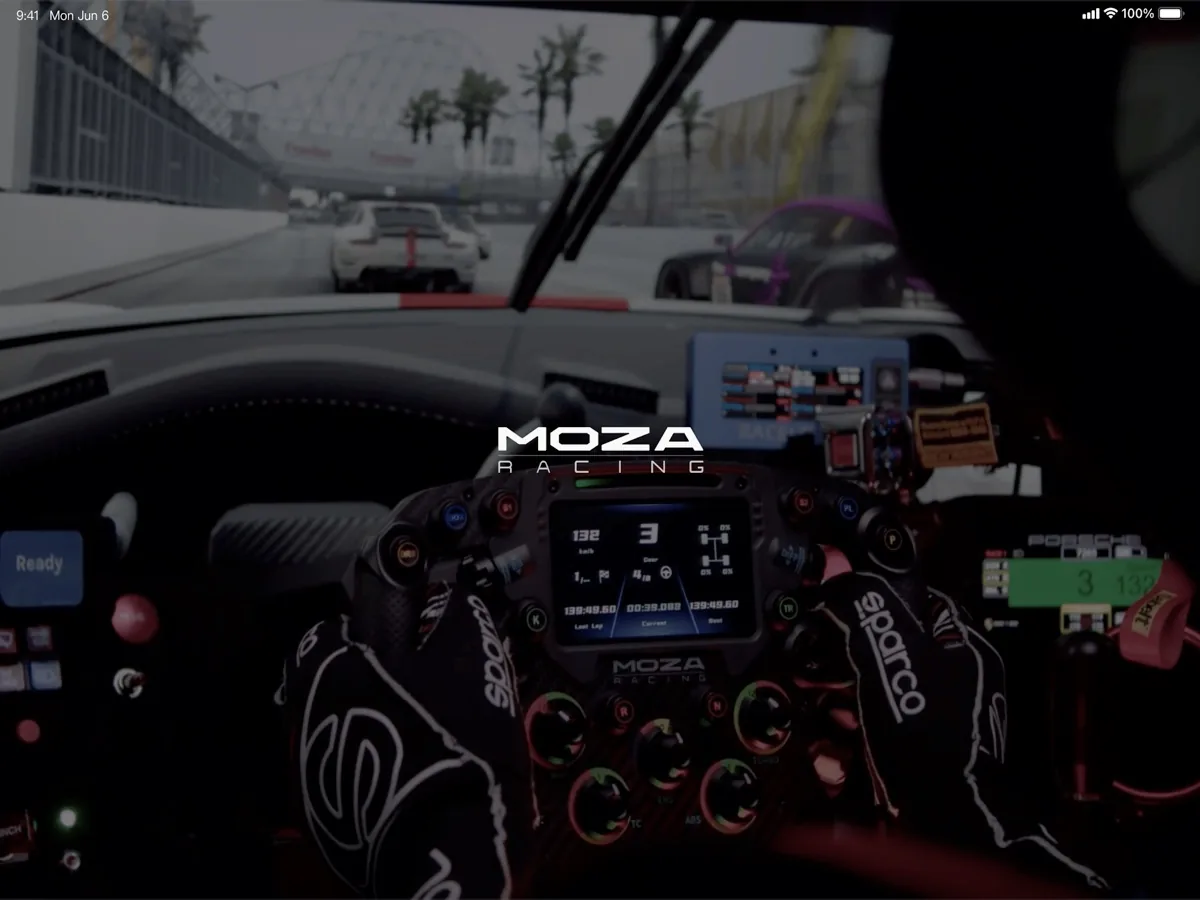

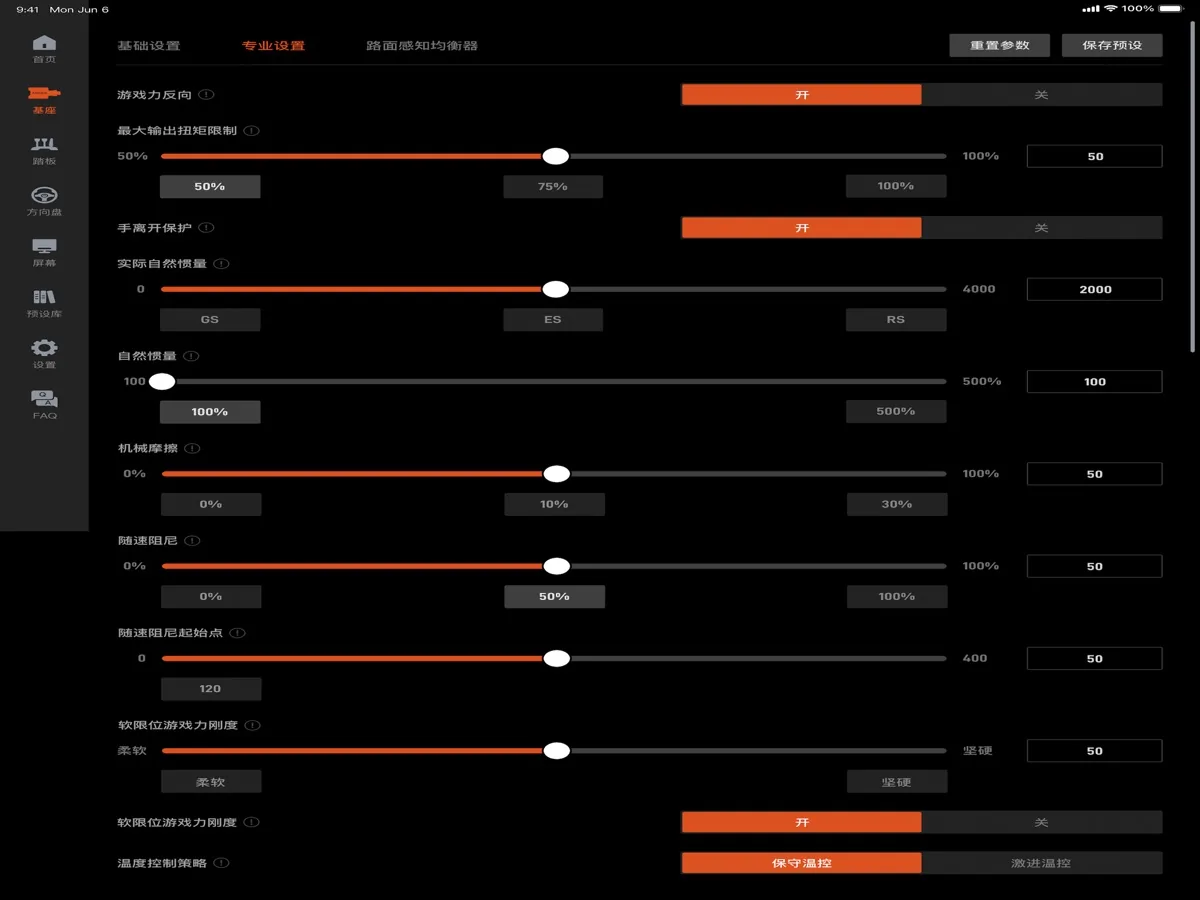

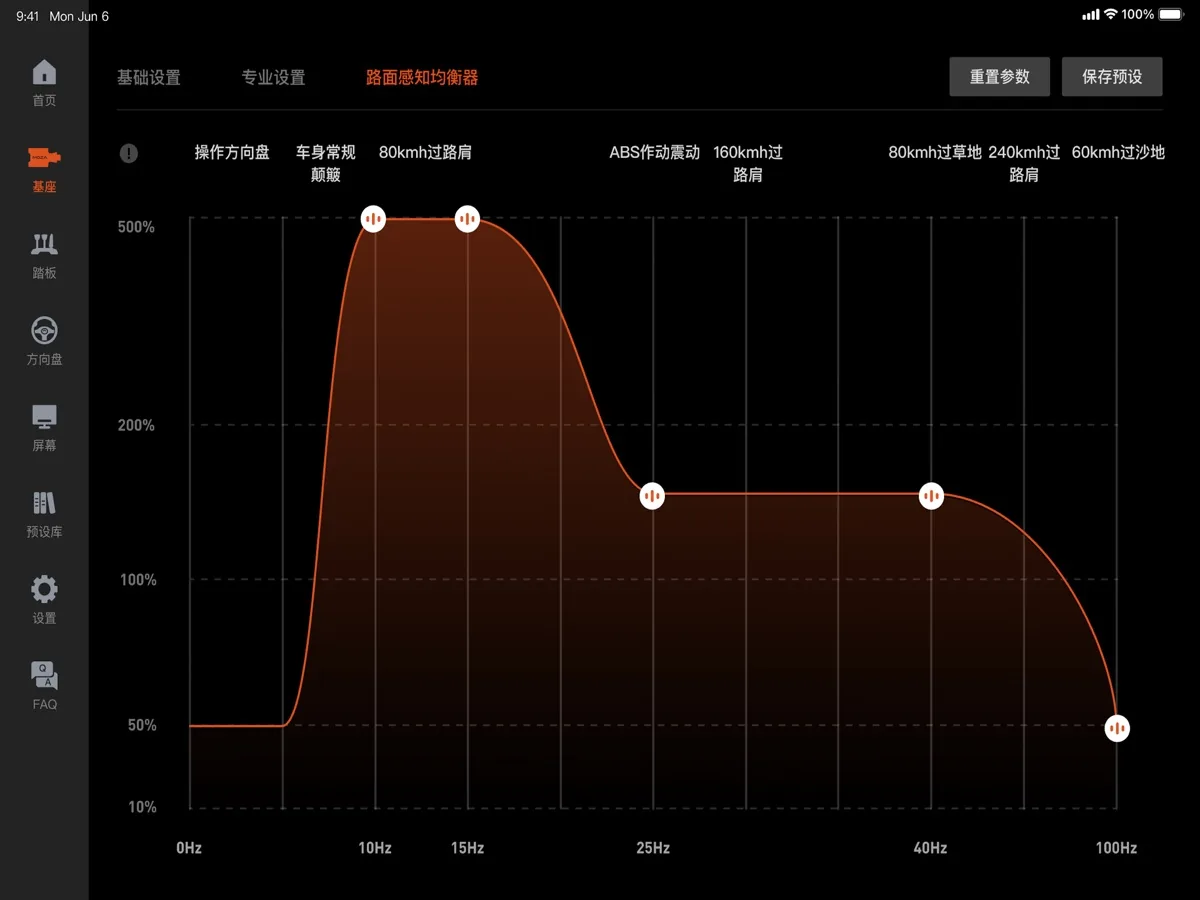

Moza Pit House is the desktop software for tuning force feedback, updating firmware and setting up peripherals. The R12 V2 page says it includes preloaded game profiles for beginners and 19 force feedback parameters for advanced users. Moza also offers a mobile app for adjusting settings, and both Traxion and OC Racing praised how easy Pit House makes tuning.

Quick release and ecosystem

Moza wheels attach with a quick release, and the bases include ports for pedals, a dashboard and a shifter, so peripherals plug into the base rather than taking up extra USB ports. The R12 V2 also has front-mounted holes for an optional bracket, according to Moza.

Game support

Moza's game compatibility list covers the major PC sims, including iRacing, Assetto Corsa Competizione, Le Mans Ultimate, Automobilista 2, the recent F1 titles and Forza Motorsport, with many marked as plug and play across the R3 to R25 bases.

Does Moza work on Xbox and PlayStation?

This is the most important question for console players. Moza's wheel base FAQ says most Moza bases and wheels are officially supported only on Windows PCs and that plugging a base into a console will not work. On Xbox, the R3 Xbox bundle is fully compatible, and other Moza bases can work if paired with Moza's officially licensed ESX steering wheel; the R25 Ultra's spec lists it as PC only, Xbox ready with the ESX wheel. On PlayStation, the FAQ says Moza products do not support PS4 or PS5 and there is no official workaround. Moza's homepage news feed has since announced its first officially licensed racing wheels for PlayStation 5, so check the current product page for PlayStation support before buying, rather than assuming any older base will work.

How much does Moza gear cost?

We leave current prices to our product card. Structurally, Moza sells bases on their own and in bundles with a wheel and pedals. The entry bundles cost far less than flagship bases, and PC Gamer judged the R5 bundle remarkably good value against its nearest rival. The catch is that upgrades add up: PC Gamer pointed out that the load-cell Performance Kit for the bundle pedals is sold separately, and the higher-end wheels, load-cell pedals and rigs can cost more than the base itself. Budget for the whole setup, including a desk clamp or cockpit that can handle the torque you choose.

Warranty, returns and support

The R12 V2 product page lists a 14-day return window for unused items in original packaging and up to 24 months of warranty, with Moza covering return and replacement costs for manufacturing defects. Coverage varies by part: the R3 support page lists 24 months for the base and 12 months for the wheel. The R25 Ultra's spec also lists up to 24 months. Support runs through Moza's knowledge base and ticket system, with troubleshooting guides for each base.

What could be better

  • Console support is limited. PC is the main platform; Xbox needs specific wheels, and PlayStation support is new.
  • Mounting. OC Racing found the R12 limited to bottom mounting with no side or front options. Moza's newer R12 V2 lists front-mounted holes for an optional bracket, so check which version you are buying.
  • Small hardware quirks. OC Racing found the quick release stiff to lock on its unit and the rear power button awkward to reach once mounted. Traxion felt a slight graininess at the wheel on the R12, similar to the R9 and R5.
  • Extras cost extra. Load-cell pedal upgrades and better wheels add significantly to the price of an entry bundle.
  • Many versions. Bases such as the R9 have gone through several versions with different features, according to Moza's support pages, which makes second-hand buying confusing.

Who should choose something else?

PlayStation players should look for a wheel that is explicitly licensed for their console. Casual players who race occasionally may be perfectly happy with a cheaper gear-driven wheel. Sim racers who want the very highest-end ecosystems, or who already own another brand's wheels and pedals, may prefer to stay with that brand to keep their accessories. And if your desk is light or wobbly, a powerful base will be wasted until you add a rigid mount or cockpit.

Is Moza Racing worth it?

For PC sim racers, yes. Moza offers direct drive at nearly every budget, its mid-range bases are widely praised for detail and value, and Pit House is regarded as one of the friendlier tuning tools. Start with the torque you need rather than the most you can afford: many racers will be happy at the R9 or R12 level, and the money saved can go on better pedals or a sturdier mount. Confirm platform support first, especially on console, and keep the receipt for the 24-month warranty.

What other reviewers found

  • PC Gamer called the R5 bundle small but robust and surprisingly powerful for much less than its peers, praising detailed feedback, build quality and the pedals, while arguing the load-cell kit should be included rather than sold separately.
  • Traxion found the R12 fills an important gap between the R9 and R21, with noticeably more strength than the R9 and an improved force feedback filter, but noted a slight graininess and, at the time, PC-only compatibility. Moza supplied the review hardware.
  • OC Racing recommended the R12 as an easy mid-range pick for detailed, responsive feedback in a compact aluminium body that stays cool and quiet, with bottom-only mounting, a stiff quick release and an awkward power button as the downsides.

Where they agree and disagree

The reviewers agree on Moza's core strength: direct-drive detail and build quality that punch above the price, and software that makes tuning approachable. They also agree that the mid-range is the sweet spot, with the R12 singled out as a balance of strength and cost that most racers will not outgrow quickly.

They differ on the small things. Traxion was bothered by a slight graininess that OC Racing did not mention, while OC Racing focused on ergonomic issues such as mounting and the power button. PC Gamer's only real complaint was about what is left out of the bundle. For a buyer, the pattern suggests the performance is reliable and the compromises are practical rather than fundamental, so check mounting, platform and what is in the box rather than worrying about the feel.

Frequently asked questions

Is Moza Racing good for beginners?

Yes, if you play on PC. The R3 and R5 bundles bring a base, wheel and pedals together, and Moza's R12 V2 page says Pit House includes preloaded game profiles so you can start driving without tuning. PC Gamer called the R5 bundle a very good value way into direct drive. Beginners should still budget for a sturdy desk or cockpit, because direct-drive bases move the wheel firmly.

Does Moza work with PS5?

Moza's wheel base FAQ says its products do not currently support PS4 or PS5 and there is no official workaround. Moza has announced its first officially licensed racing wheels for PlayStation 5, so support is arriving through specific new products rather than existing bases. Check the product page for explicit PlayStation compatibility before you buy anything for a console.

Which Moza wheel base should I buy?

Choose by torque and budget. The R3 and R5 suit newcomers, the R9 and R12 are where most reviewers see the best balance of strength and price, and the R16, R21 Ultra and R25 Ultra serve enthusiasts with sturdy rigs. More torque is only useful if your mount can handle it and you want stronger effects; Traxion noted that most drivers will never use all the torque of a flagship base.

What warranty does Moza offer?

Moza's R12 V2 page lists up to 24 months of warranty and a 14-day return window for unused items in original packaging. Coverage can differ by component: the R3 support page lists 24 months for the base and 12 months for the included wheel. Moza says it covers return and replacement costs for manufacturing defects. Keep your proof of purchase.

Can Moza bases be used on Xbox?

Sometimes. Moza's FAQ says a base will not work on Xbox on its own, but the R3 Xbox bundle is fully compatible with Xbox One and Series consoles, and other bases can work when paired with Moza's officially licensed ESX steering wheel. Without one of those licensed products, the base cannot operate on an Xbox.
